DFS VANTA SCALE Carbon Road Wheelset – Fish-Scale Surface Carbon Spokes 45/55/65mm depth

$1,299.00 USD

Sale Sold out

RIM DEPTH 45MM 55MM 65MM

MODEL VANTA VANTA PRO(INNER NIPPLES)

DFS VANTA Carbon Wheelset – Fish-Scale Rim Design

Product Overview

The DFS VANTA Carbon Wheelset combines a distinctive fish-scale rim surface with a performance-focused carbon wheel design. Built for road cyclists who value unique styling, carbon spoke construction, and precise weight specifications, VANTA offers a choice of rim depths and spoke configurations to suit different riding preferences.

Available with T40 carbon spokes or T32/T52 carbon spokes with hidden nipples, the VANTA series delivers two distinct configurations, both featuring DFS RT240 hubs.

Choose from 45mm, 55mm, and 65mm rim depths to find the setup that best matches your riding style.

Key Features

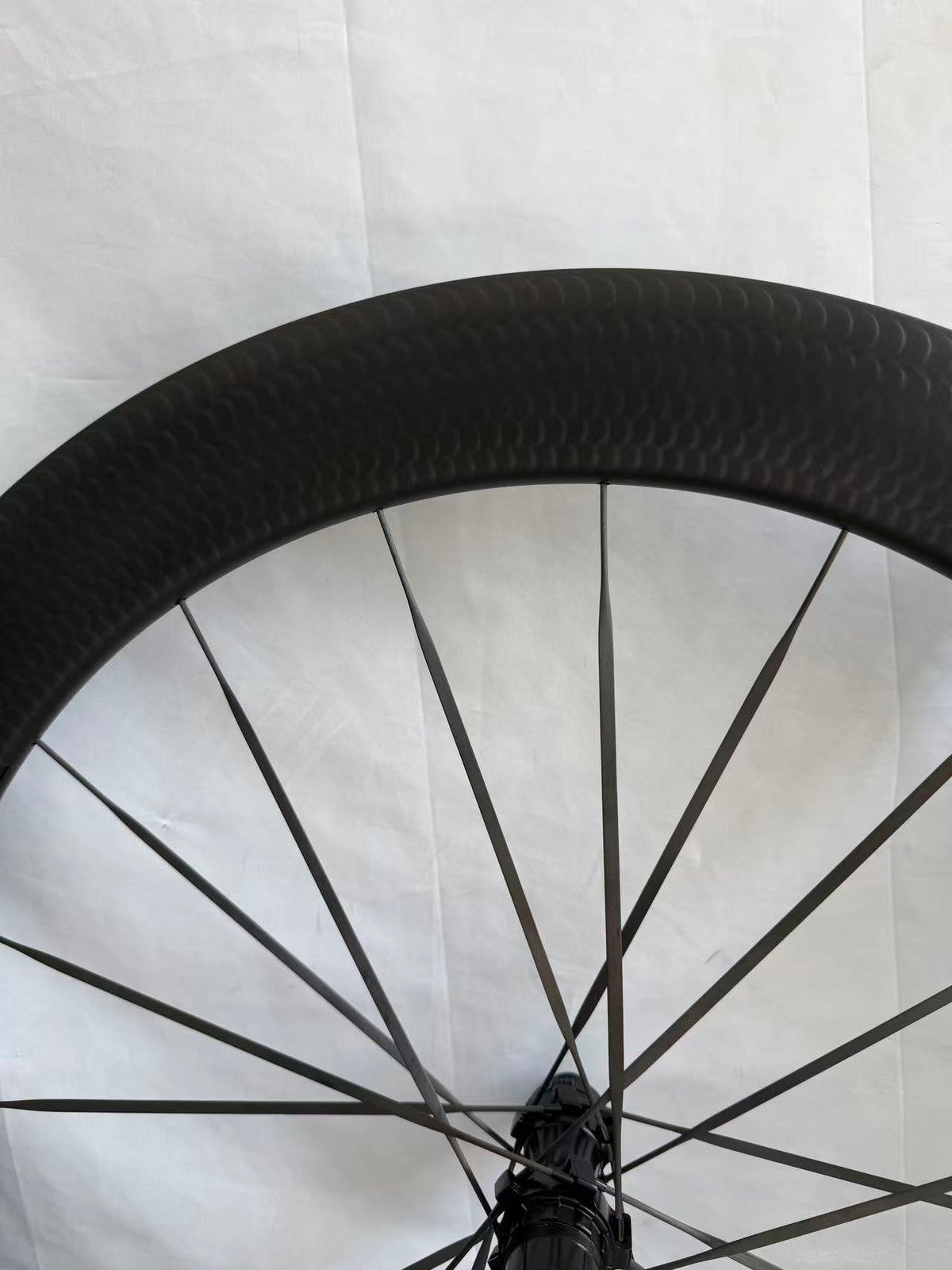

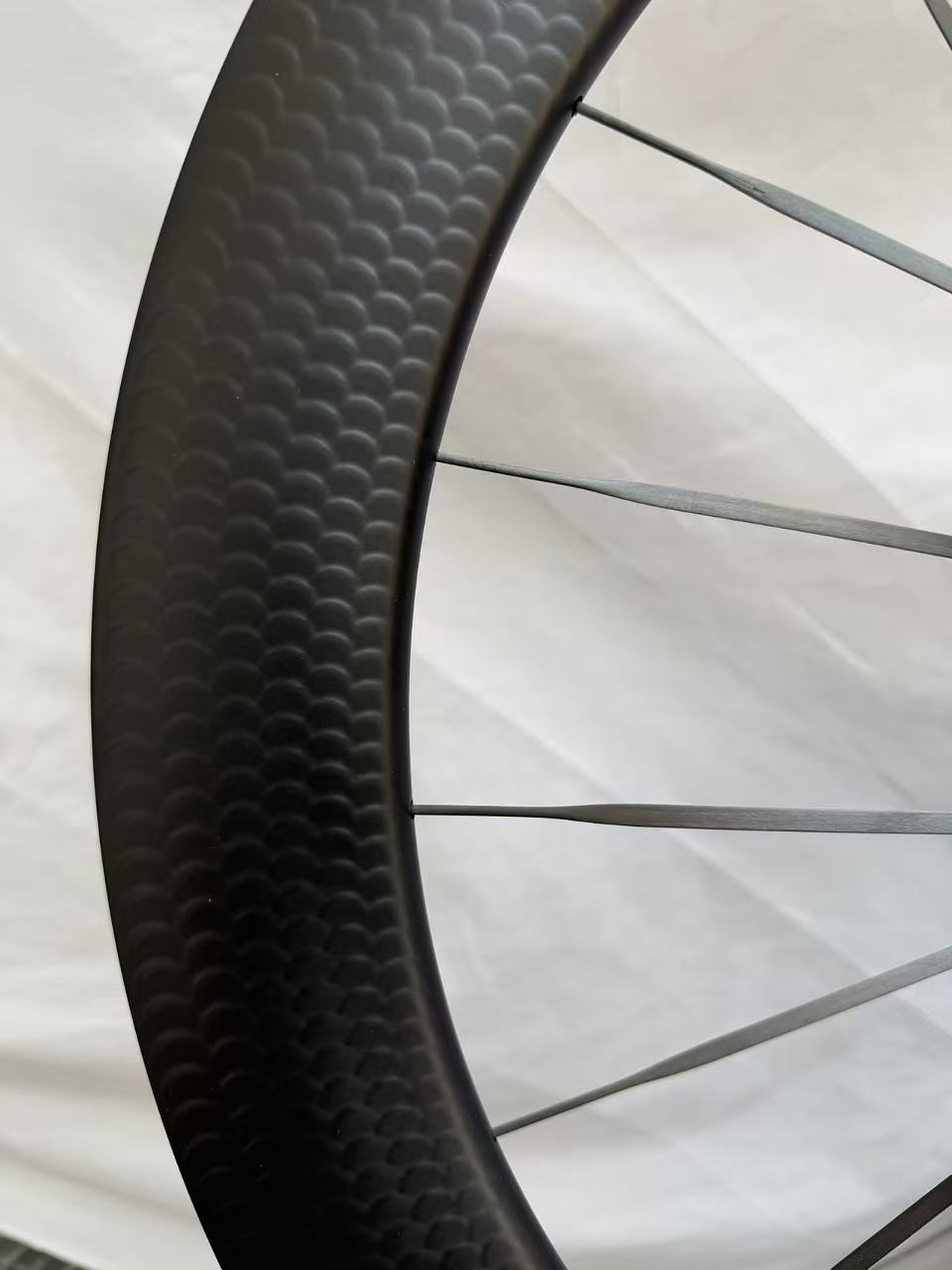

Distinctive Fish-Scale Rim Surface – A unique textured finish that gives the wheelset a recognizable, premium appearance.
Full Carbon Construction – Carbon fiber rims and carbon spokes for performance-oriented road cycling.
Two Carbon Spoke Configurations – Choose T40 spokes or T32/T52 spokes with hidden nipples.
Three Rim Depth Options – Available in 45mm, 55mm, and 65mm.
DFS RT240 Hubs – A consistent hub platform across both configurations.
Detailed Weight Options – Compare individual rim weights and complete wheelset weights for every depth.

Technical Specifications

Specification	Details
Series	DFS VANTA
Wheel Type	Road Wheelset
Wheel Size	700C
Rim Material	Carbon Fiber

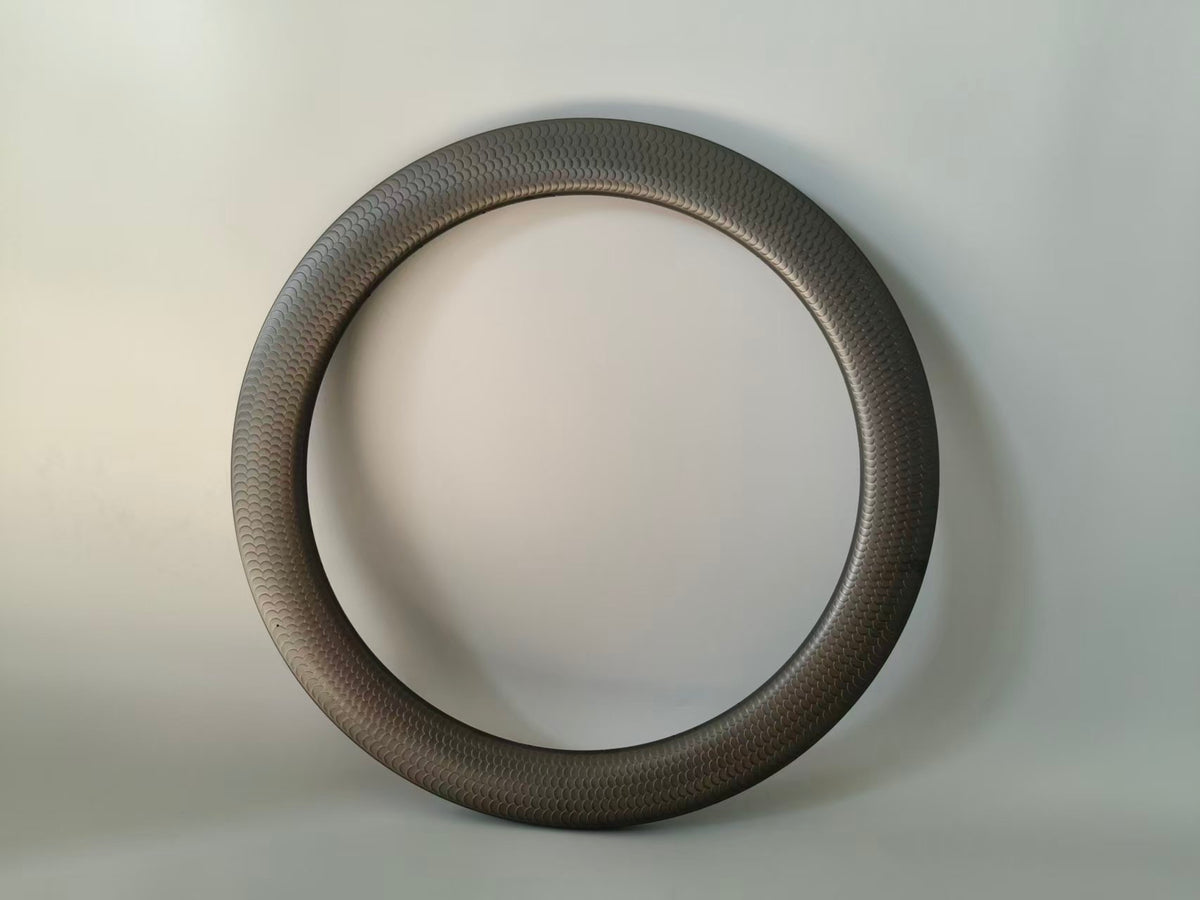

Rim Surface	Fish-Scale Texture

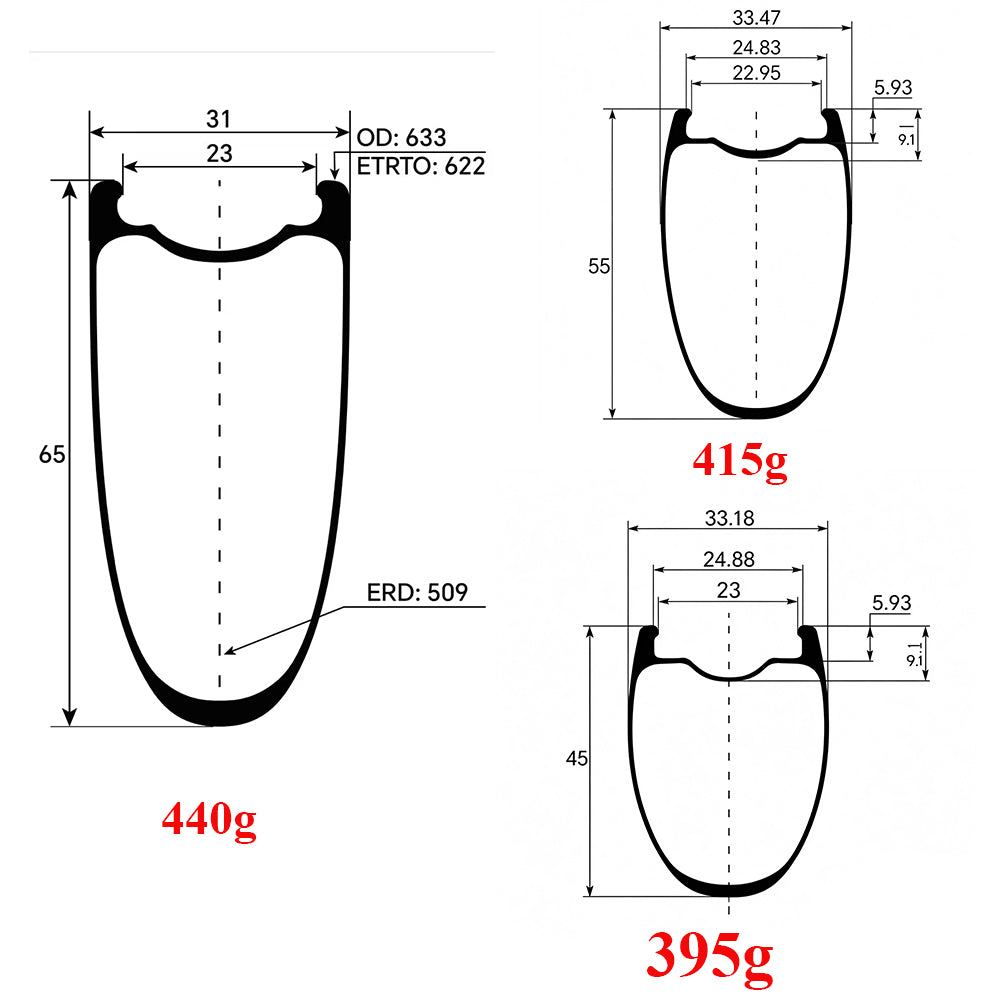

Internal Width (IW)	23mm
External Width (OW)	31mm

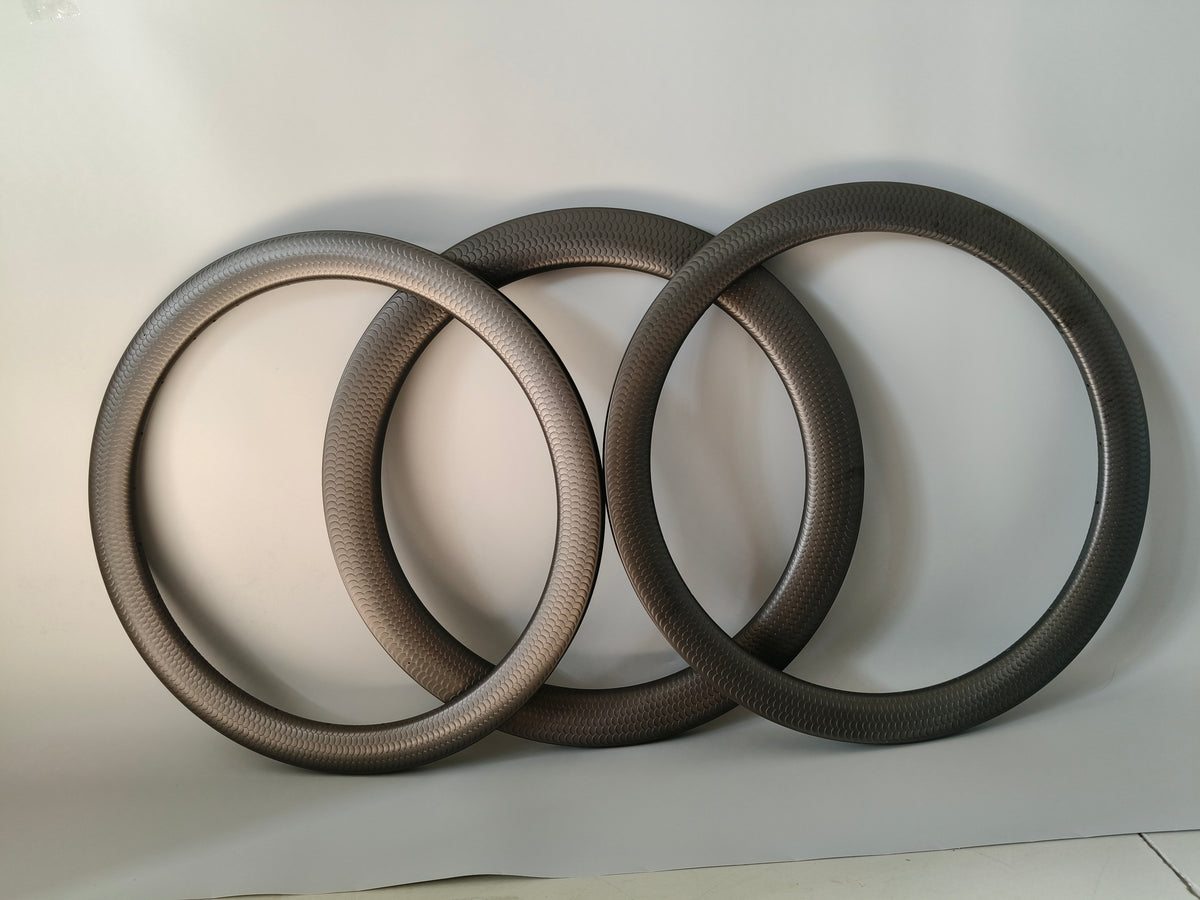

Rim Depth Options	45mm / 55mm / 65mm
Hub	DFS RT240
Spoke Options	T40 Carbon / T32-T52 Carbon
Hidden Nipples	T32/T52 Configuration
Wheelset Weight Tolerance	±30g

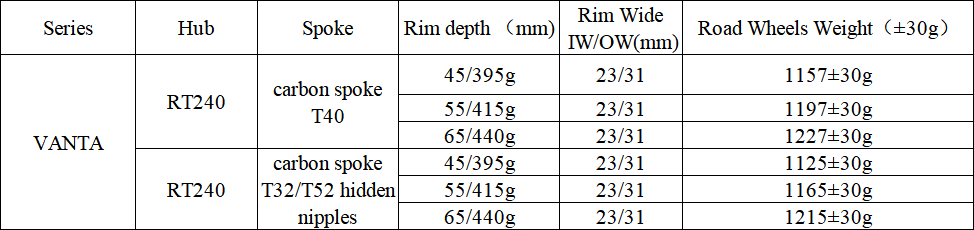

Rim Depth & Weight Chart

VANTA – T40 Carbon Spokes

Rim Depth	Individual Rim Weight	Complete Wheelset Weight
45mm	395g	1,157g ±30g
55mm	415g	1,197g ±30g
65mm	440g	1,227g ±30g

VANTA – T32/T52 Carbon Spokes with Hidden Nipples

Rim Depth	Individual Rim Weight	Complete Wheelset Weight
45mm	395g	1,125g ±30g
55mm	415g	1,165g ±30g
65mm	440g	1,215g ±30g

Complete wheelset weights are listed with a tolerance of ±30g. Individual rim weights refer to one rim.

Choose Your Configuration

VANTA – T40 Carbon Spokes

The T40 configuration offers a straightforward carbon spoke setup for riders looking for a distinctive road wheelset with a balance of style and performance.

Available rim depths: 45mm, 55mm, and 65mm.

VANTA – T32/T52 Carbon Spokes with Hidden Nipples

The T32/T52 configuration features hidden nipples for a cleaner, more integrated appearance. It also offers a different complete wheelset weight across the three rim depths.

Available rim depths: 45mm, 55mm, and 65mm.

Both configurations use DFS RT240 hubs and share the same 23mm internal and 31mm external rim widths.

Designed for Road Cycling

The DFS VANTA series is made for road cyclists seeking a distinctive fish-scale rim finish, carbon spoke construction, and multiple setup options.

Whether you choose the T40 configuration or the T32/T52 hidden nipple version, VANTA offers a consistent platform with clearly specified rim depths and wheelset weights.
