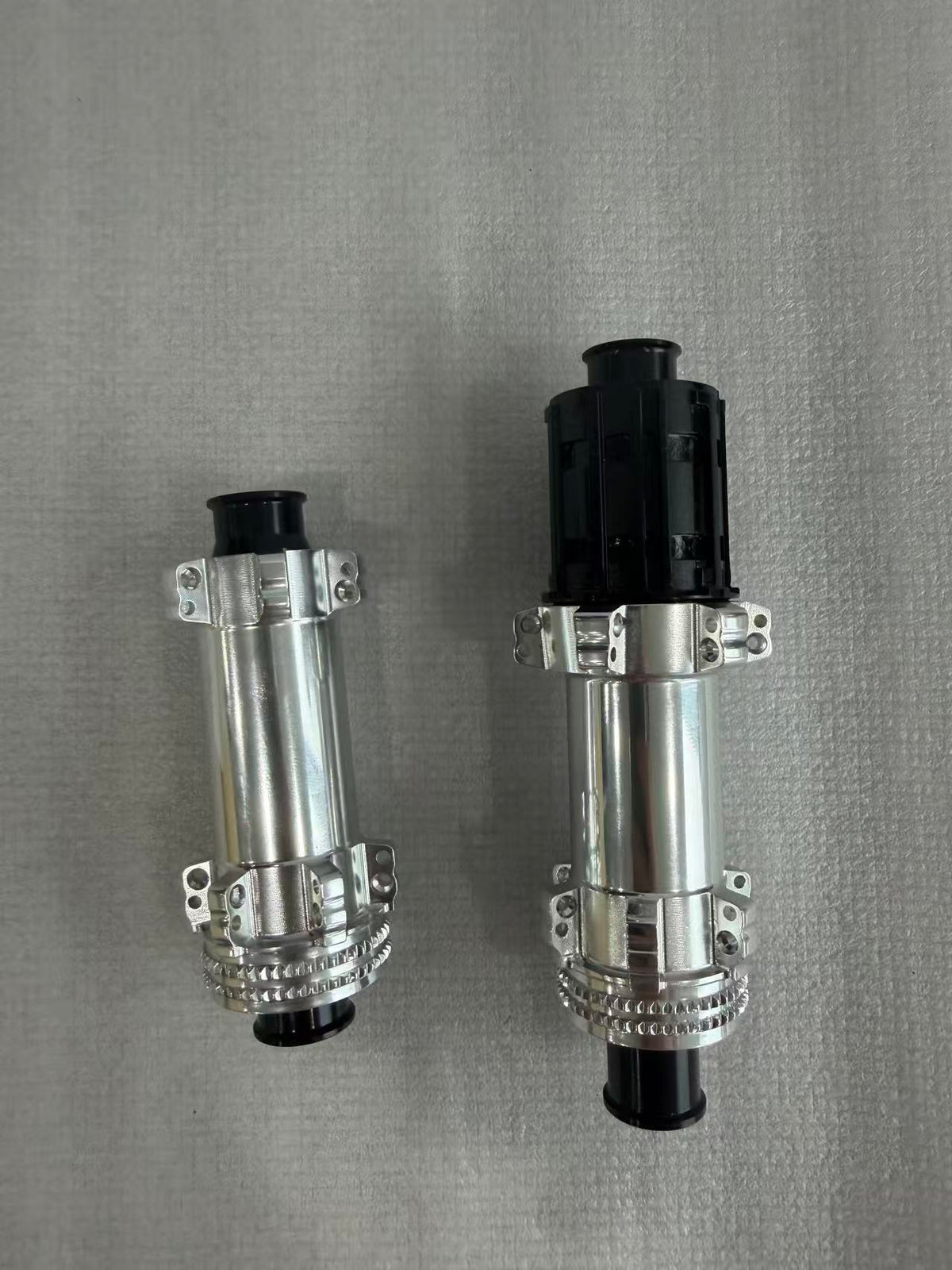

R240 Road Disc Hub
Reliable Performance. Built for Every Ride.
The DFS R240 is a precision-machined road disc hub designed for riders and wheel builders seeking a reliable balance of smooth rotation, efficient power transfer, durability, and value.
Built with a refined bearing structure and reliable PG Ratchet drive system, the R240 delivers consistent performance for both competitive cycling and everyday riding.
The matched 24H / 24H straight-pull configuration is specifically designed for steel spokes, providing a dependable foundation for custom wheel builds and wheel upgrades.
With standardized specifications, reliable bearings, broad freehub compatibility, and a Center Lock brake interface, the R240 is an ideal choice for building, upgrading, or replacing modern road wheelsets.
Reliable. Practical. Ready to Build.
⚙️ Technical Specifications
-
Weight: 235g (Lightweight)
-
Bearings: S&S Steel Bearings
-
System: SS Ratchet (Available in 36T or 54T)
-
Axle Standard (O.L.D): Front 12x100mm / Rear 12x142mm
-
Spoke Holes: 24H Front / 24H Rear
-
Freehub Compatibility: Shimano HG, SRAM XDR, Campagnolo N3W, MSR
-
Color: Black
| Specification |
Front |
Rear |
| Material |
AL 6061 (Body) + AL 7075 (Axle) |
AL 6061 (Body) + AL 7075 (Freehub & Axle) |
| Spoke system |
Straight Pull (Steel Spoke) |
| Spoke holes |
24H |
24H |
| Spoke gauge |
14G |
| Bearings |
2 × 6802 |
2 × 15267 / 6802 |
| Brake interface |
Center Lock |
| OLD & End Caps |
100mm ( Φ12 THRU) |
142mm (Φ12 Thru) |
| Ratchet |
|
36T(54T available） |
|
|
|

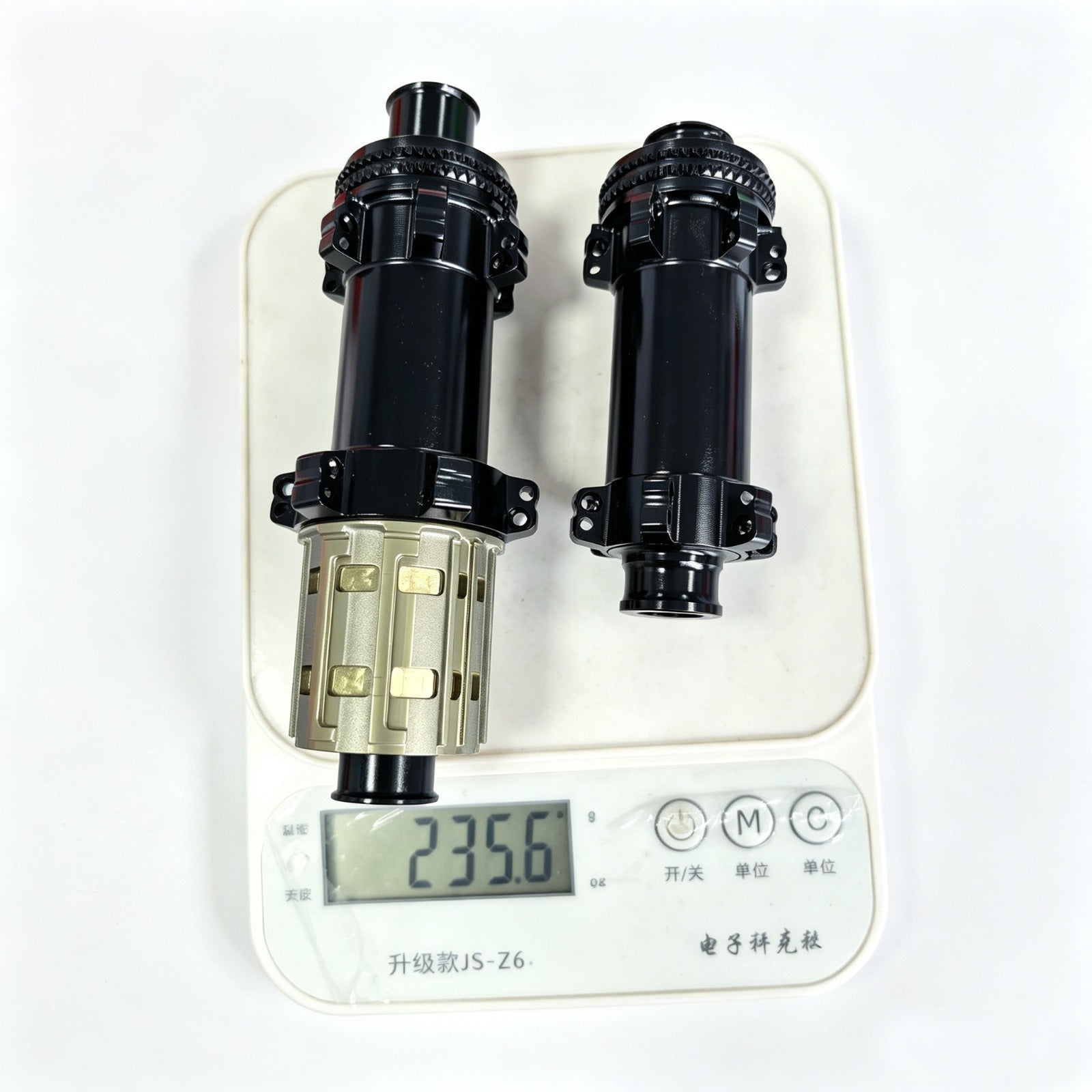

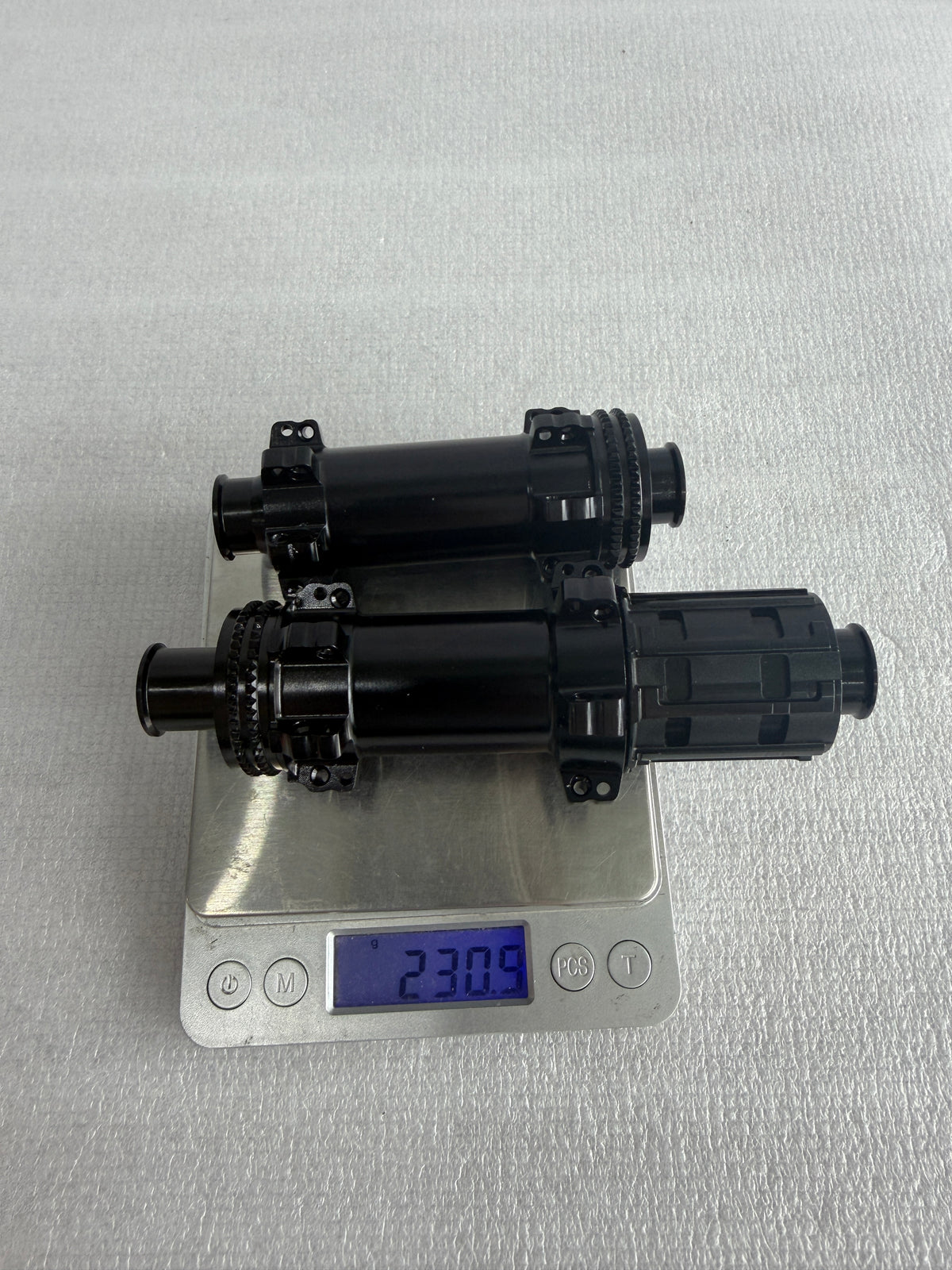

| Weight |
235g ± 5g / set |
