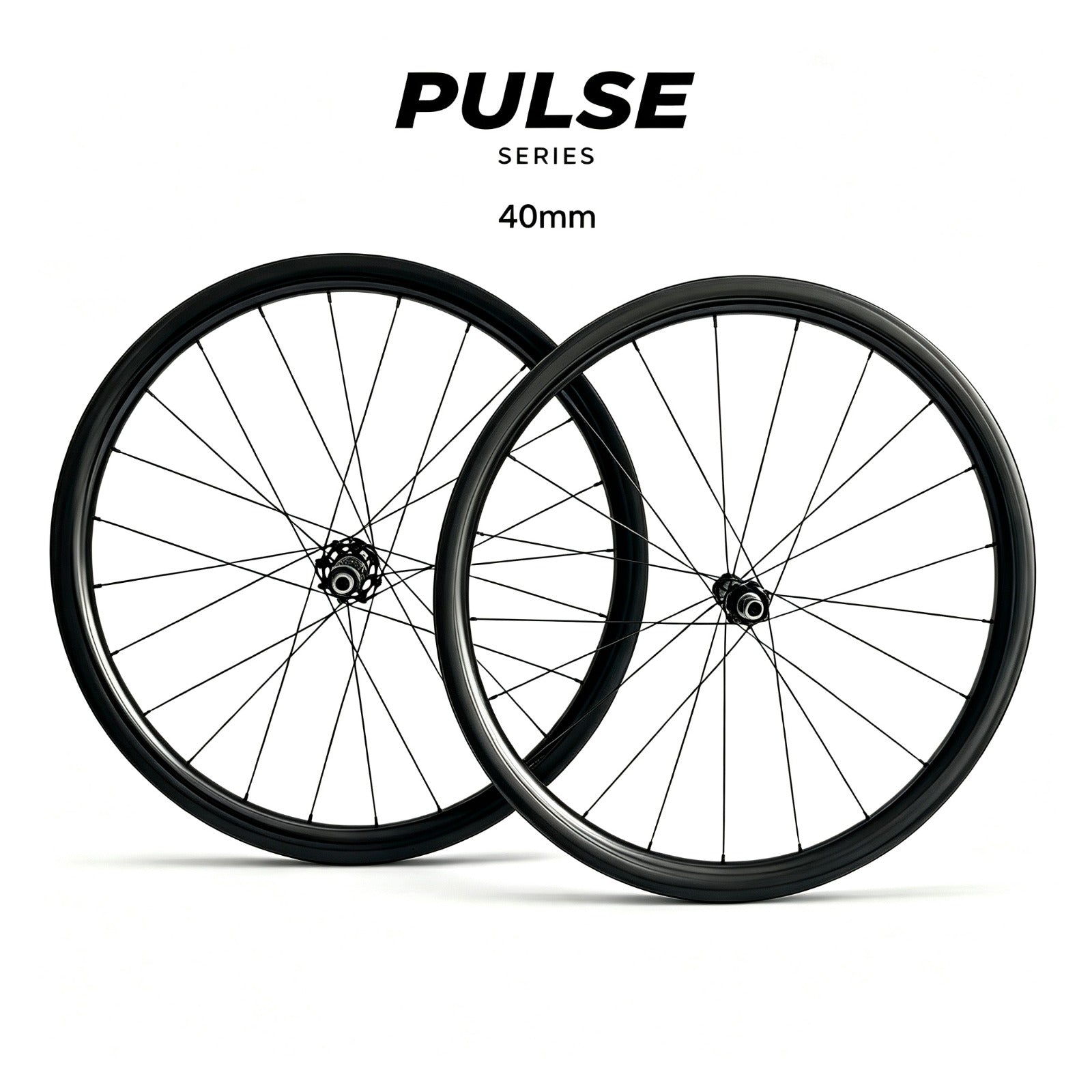

PULSE Series | 40mm Carbon Wheelset

THE ULTIMATE ALL-ROUNDER. PERFECT BALANCE.

The PULSE 40 is our most versatile high-performance wheelset, built around our legendary DFS R2 hubs. Engineered for riders who want one wheelset to do it all—climbing, rolling, and sprinting—with unmatched stiffness and responsiveness.

🔥 KEY FEATURES:

• Aerodynamic Versatility: 40mm deep U-shape rim profile. Featuring an ultra-wide 5mm internal / 32mm external width for seamless airflow integration with 28mm to 32mm modern tires.
• Rim Technologies: Choose our standard Super Ultra-Light (UXL) or the Reinforced version (XL / +30g) for heavier riders.
• Carbon Spokes Technology: Designed to handle massive torque, eliminating lateral flex for 100% power transfer.

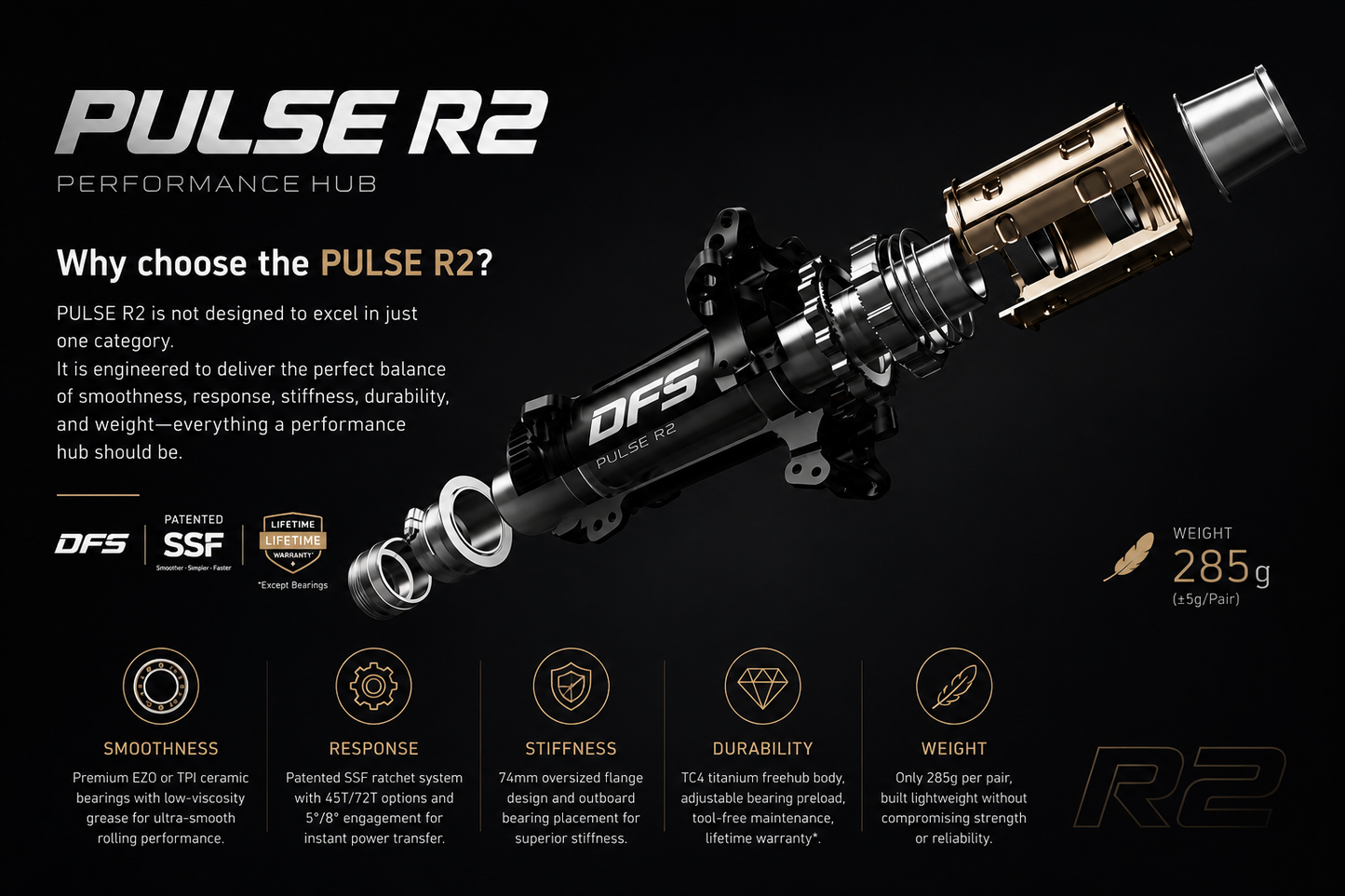

• The R2 Hub: Our most robust oversized hub. Available in standard configuration (Steel EZO bearings + 45T Ratchet) or fully upgraded for racing (Ceramic TPI bearings + 72T lightning-fast Ratchet).

⚖️ WEIGHT SPECIFICATIONS (Pair):

• R2 Hubs + T33 Spokes + UXL Rims: ~ 1115g (+/- 30g)

Please leave an "Order Note" in your cart to specify your preferred Finish (UD Matte or Glossy Black) and Hub Color.

Specification

• Series: PULSE 40
• Materials: Toray T800 + T1000
• Type: Road · Cyclocross · Gravel
• Brake Interface: Disc Brake
• Includings: Complete Wheelset + RIM Tape

• Rims: 40mm depth
• Size: 700C
• Holes: 21 F/ 24R
• Hub spacing:12*100mm 12*142mm
• Ratchet :45T  or upgrade 72T
• Freehub:shimano HG or  sram XDR
• Nipples:  Secure-Lock
• Weight: 1115g
• Spokes: T33 (2.8g carbon spoke 3.3mm wide)
• Hubs: DFS R2
• Rider weight limit:  120kg
• Edition: PULSE
• Warranty: 3 Years
• Release Time: Dec 2024
