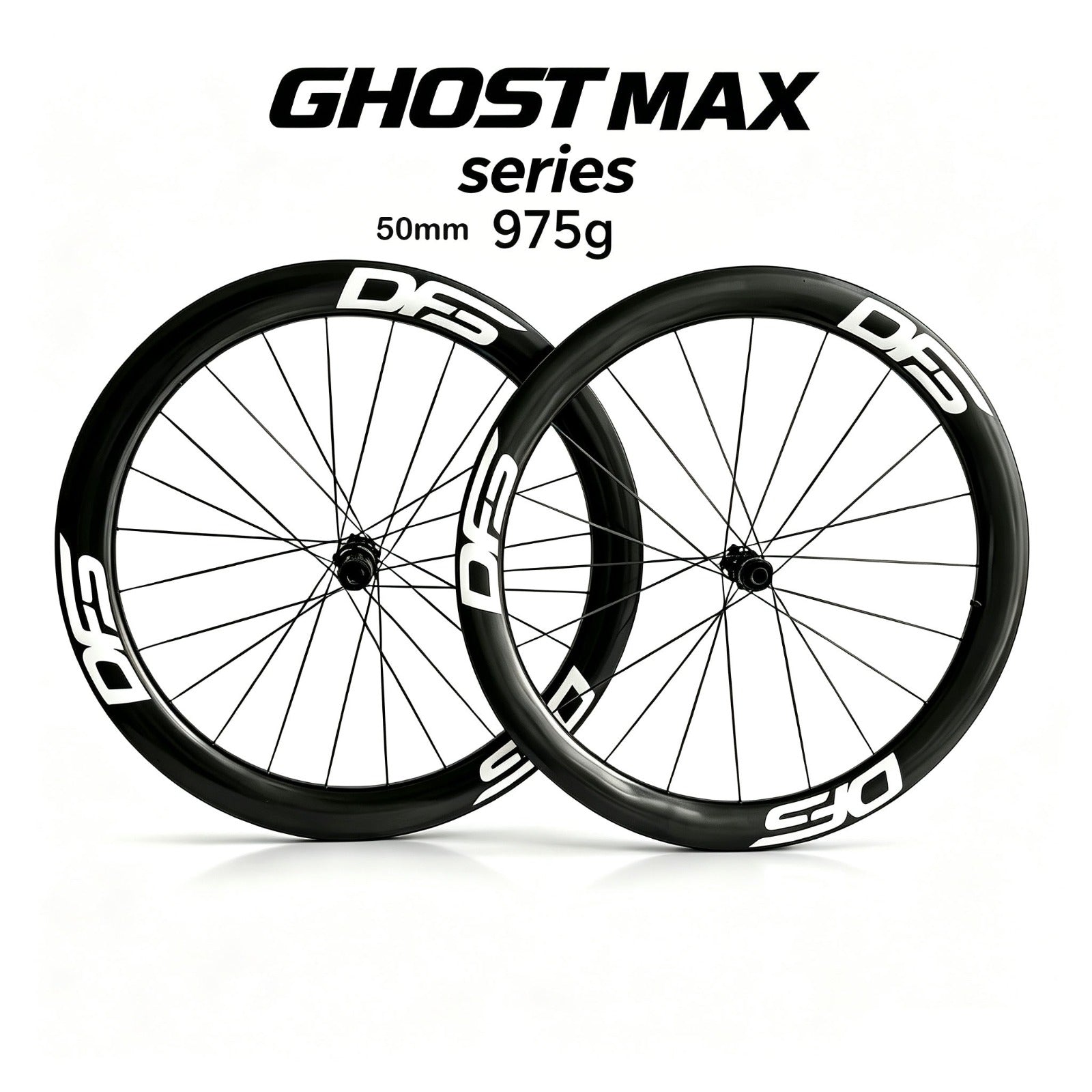

GHOST MAX Series | 50mm Ultra-Light Carbon Wheelset

PURE POWER TRANSFER. THE RACING MACHINE.

The GHOST MAX 50 is our highest-performing race wheelset, built around our flagship DFS RT240 hubs. Engineered for aggressive riders, its intact rim bed and carbon spokes deliver unmatched stiffness under extreme watts.

🔥 KEY FEATURES:

• Aerodynamic Supremacy: 50mm deep U-shape rim profile. Featuring an ultra-wide 25mm internal / 31mm external width for seamless airflow integration with 28mm to 32mm modern tires.
• Rim Technologies: SUXL or Exclusive Super Ultra-Light (SUXL) Moulded Holes technology. The tire bed is completely sealed without drilled spoke holes, keeping the carbon fiber structure 100% intact for maximum lateral stiffness and a native tape-free tubeless setup.
• Carbon Spokes Technology: Equipped with our exclusive T32 carbon spokes. Twice as light as steel, they offer zero lateral flex for 100% power transfer.
• The RT240 Hub: A masterpiece of CNC machining. Extremely light, equipped natively with Ceramic bearings and a 54T Ratchet system for instant engagement.
• Molded Spoke Hole Technology : Lighter, superior strength and durability.


⚖️ WEIGHT & SPECS (Pair):

• RT220 Hubs + T32 Spokes + SUXL Moulded Holes Rims: 980g (+/- 30g)
• Rider Weight Limit: 100 kg

Please leave an "Order Note" in your cart to specify your preferred Finish (UD Matte or Glossy Black) and logo color (Big White, White or Black).

Specification

• Series: GHOST MAX 50
• Materials: Toray T800 + T1100 + M46J Carbon Fiber
• Type: Road · Cyclocross · Gravel
• Brake Interface: Disc Brake
• Includings: Complete Wheelset + RIM Tape

• Rims: 50mm depth
• Size: 700C
• Holes: 20 F/ 20R
• Hub spacing:12*100mm 12*142mm
• Ratchet :36T  or upgrade 54T
• Freehub:shimano HG or  sram XDR
• Nipples:  Secure-Lock
• Weight: 980g
• Spokes: T32 (2.1g carbon spoke 3.2mm wide)
• Hubs: DFS RT220
• Rider weight limit:  100kg
• Edition: GHOST MAX
• Warranty: 3 Years
• Release Time: Jan 2026
