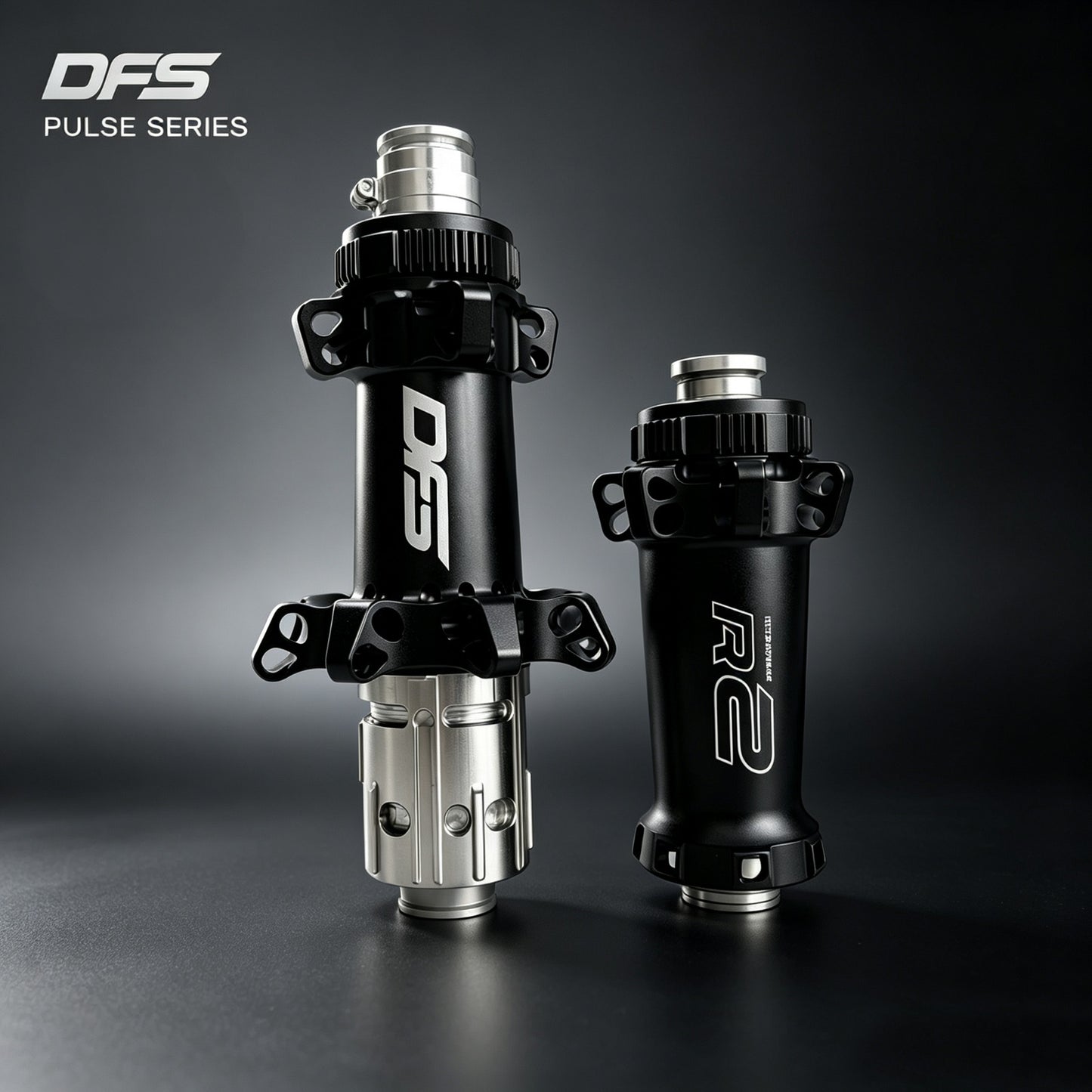

DFS PULSE R2 Road Disc Hub

Engineered for Speed. Built for Life.

The DFS PULSE R2 is a high-performance road disc hub designed specifically for premium carbon wheelsets.

Developed in-house by DFS since 2021, the PULSE R2 was created around one simple idea:

True performance comes from balance.

Rather than chasing the lowest possible weight or the fastest engagement alone, the PULSE R2 combines smooth rolling, fast engagement, high stiffness, low weight, and long-term reliability into one complete hub platform.

At approximately 285g per set, it provides an ideal foundation for high-performance road racing and lightweight carbon wheel builds.

PERFECTLY BALANCED

Smoothness. Response. Stiffness. Reliability. Weight.

The PULSE R2 is engineered to deliver performance across every area that matters.

• 285g — Lightweight hubset

• 45T / 72T — DFS SSF Ratchet System

• 8° / 5° — Fast engagement

• 2:1 — Optimized rear wheel lacing platform

• 74mm — Oversized rear flange

• TC4 Titanium — High-strength freehub body

• Center Lock — Road disc brake interface

Key Features

01 — ULTRA-SMOOTH ROLLING

Premium Bearings. Low Friction. Efficient Performance.

The PULSE R2 uses premium EZO sealed bearings, with optional TPI ceramic bearings available for riders seeking further optimization.

Combined with carefully selected low-viscosity lubricant and precise bearing adjustment, the system is designed to minimize friction while maintaining reliable protection and long-term durability.

The result is a smooth, efficient and responsive riding experience.

02 — DFS SSF RATCHET SYSTEM

Smoother. Simpler. Faster.

The PULSE R2 features the DFS SSF Ratchet System, developed to deliver fast engagement while maintaining smooth operation and reliable long-term performance.

Available in:

45T — 8° Engagement
72T — 5° Engagement

The high-precision ratchet system provides rapid power response during acceleration, climbing and sprinting.

Its simplified design also makes maintenance easier while reducing unnecessary complexity.

Fast engagement. Smooth operation. Efficient power transfer.

03 — SUPERIOR STIFFNESS

Built Around a High-Performance Wheel Platform.

The PULSE R2 uses an optimized 2:1 rear wheel lacing platform together with an oversized 74mm flange.

The larger flange diameter improves spoke bracing angles, helping increase both lateral and torsional wheel stiffness.

The main bearing position is also optimized to provide better support under load.

The result is a more stable and direct wheel platform with efficient power transfer.

Whether accelerating out of a corner or sprinting out of the saddle, the PULSE R2 provides the solid response expected from a high-performance racing hub.

04 — TC4 TITANIUM FREEHUB BODY

Lightweight Strength. Long-Term Durability.

The rear freehub body is manufactured from TC4 titanium alloy.

Compared with conventional aluminum freehub bodies, TC4 titanium provides excellent resistance against cassette bite, corrosion and long-term wear.

This makes the PULSE R2 particularly suitable for riders who demand both high performance and long-term reliability.

05 — PRECISION BEARING PRELOAD

Fine-Tuned for Smoothness and Durability.

The PULSE R2 features an adjustable bearing preload system that allows the hub bearings to be precisely set for optimal operation.

Correct preload helps maintain smooth rotation, reduce unnecessary bearing stress and extend bearing service life.

The system is designed to provide a precise and dependable bearing setup without unnecessary complexity.

06 — LIGHTWEIGHT WITHOUT COMPROMISE

Approximately 285g per Set.

Weight matters.

But lightweight design should never come at the expense of stiffness, strength or reliability.

At approximately 285g per set, the PULSE R2 offers an excellent weight-to-performance balance for high-end carbon wheelsets.

Every component has been carefully optimized to remove unnecessary weight while maintaining the structural performance required for serious riding.

Designed for Carbon Spokes

The PULSE R2 is designed specifically for high-performance carbon spoke wheel builds.

Its straight-pull architecture and optimized flange geometry provide excellent spoke support and help achieve balanced spoke tension.

This makes the PULSE R2 an ideal hub platform for lightweight and high-stiffness carbon wheelsets.

Built around carbon spokes. Built for performance.

Precision CNC Construction

The PULSE R2 combines a high-strength 7-series aluminum alloy hub shell with a TC4 titanium alloy freehub body.

Precision CNC machining allows DFS to optimize the shape and structure of each component while maintaining the required strength and stiffness.

The result is a clean, lightweight and highly refined hub platform designed for modern performance wheelsets.

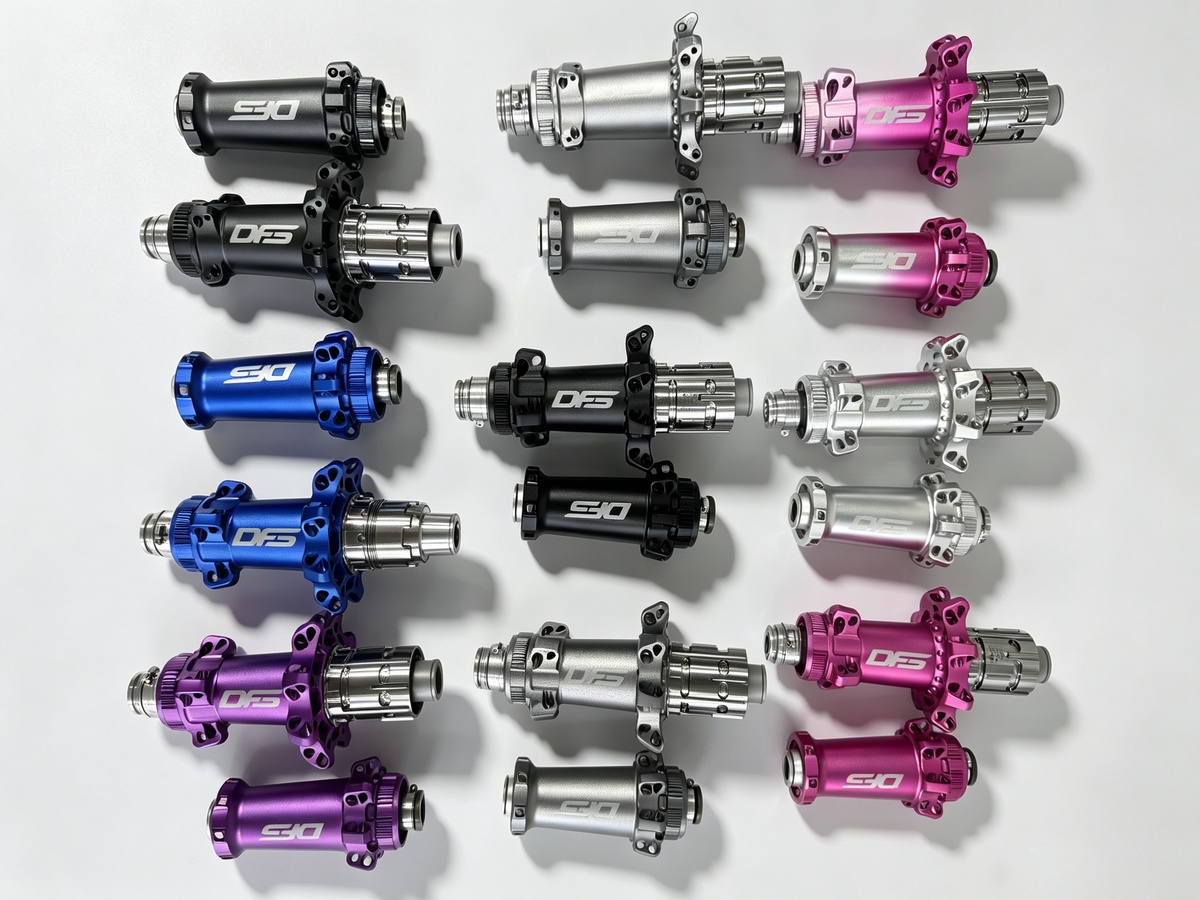

Customize Your PULSE R2

The PULSE R2 is available in Black as standard, with custom anodized colors available for riders and wheel builders looking for a more personalized finish.

Standard Color: Black
Custom Color: Available — additional $34

Custom finishes allow the PULSE R2 to be matched with different rim and spoke combinations for a truly individual wheelset.

Technical Specifications

Front Hub

Weight: Approx. 89g
Axle: 12 × 100mm Thru Axle
Material: High-Strength 7-Series Aluminum Alloy
Spoke Holes: 21H
Spoke Type: Straight Pull
Brake Interface: Center Lock

Rear Hub

Weight: Approx. 195g
Axle: 12 × 142mm Thru Axle
Material: High-Strength 7-Series Aluminum Alloy + TC4 Titanium Alloy Freehub Body
Spoke Holes: 24H
Spoke Type: Straight Pull
Brake Interface: Center Lock
Ratchet: 45T / 72T

Bearing Options

Standard

EZO Premium Sealed Bearings

Designed to provide smooth rotation, low friction and dependable durability.

Optional

TPI Ceramic Bearings

Available as an upgrade for riders seeking further reduction in rotational friction and optimized performance.

Freehub Compatibility

Available freehub configurations should be selected according to your drivetrain.

Shimano HG
SRAM XDR
Campagnolo N3W

Please select the correct freehub body when ordering.

What's Included

• PULSE R2 Front Hub

• PULSE R2 Rear Hub

• Front & Rear Axle Components

• Freehub Body

• Required End Caps / Adapters

• Hub Accessories

Warranty

The DFS PULSE R2 is covered by a 2-year warranty against manufacturing defects under normal use.

Bearings and normal wear components are considered consumable parts and are excluded from standard warranty coverage.

For warranty claims, please contact DFS with your order information and relevant photos or videos.

DFS PULSE R2

Perfectly Balanced.

Smoothness.
Response.
Stiffness.
Reliability.
Weight.

The PULSE R2 was never designed simply to be the lightest hub.

It was designed to deliver a better wheel.

DFS PULSE R2
Engineered for Speed. Built for Life.
